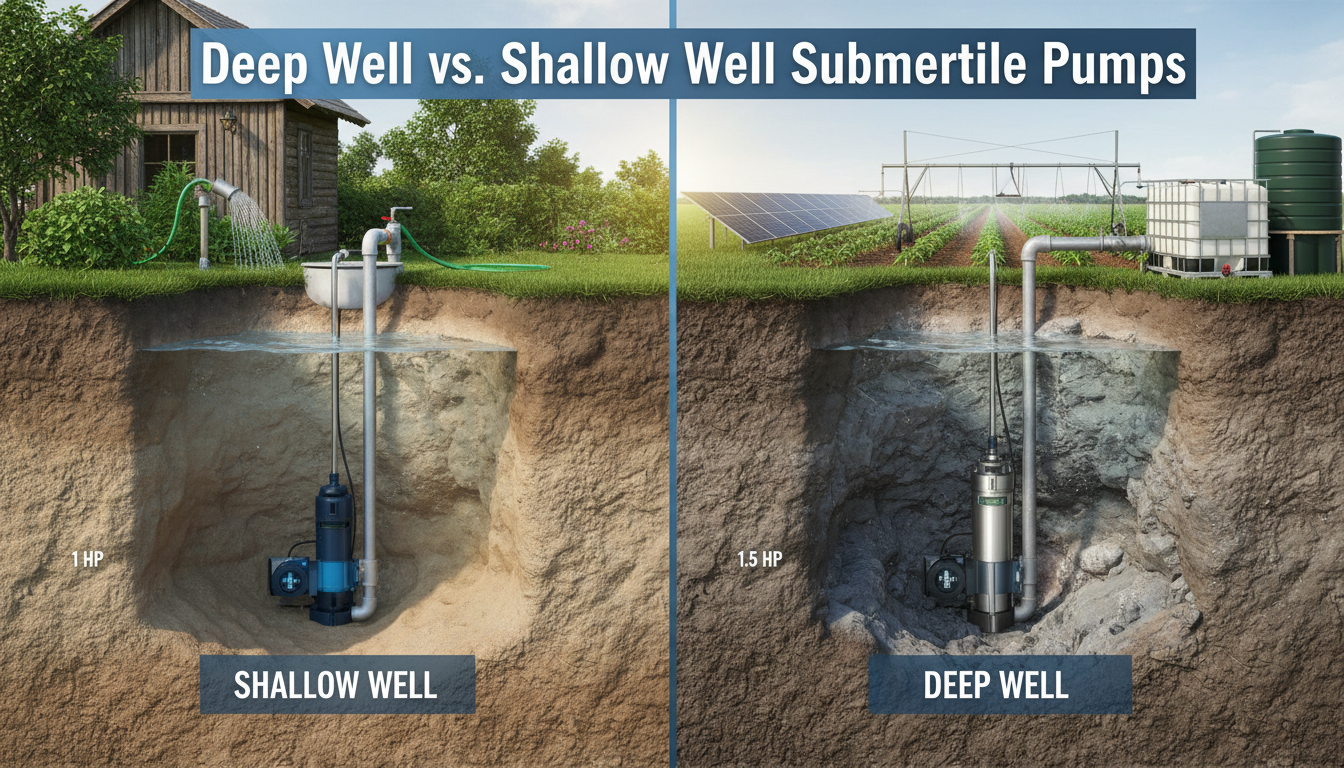

Deep Well vs. Shallow Well Submersible Pumps: Key Differences

Submersible pump technology has revolutionized water extraction, enabling access to groundwater across diverse geological conditions and depths. However, the fundamental principle that "all submersible pumps are interchangeable" is dangerously incorrect. Deep well and shallow well submersible pumps represent fundamentally different engineering designs optimized for distinct operational conditions. Selecting the wrong pump type for a specific well depth creates chronic operational failures, excessive energy consumption, and premature equipment replacement. This comprehensive guide provides hydrogeologists, well contractors, agricultural professionals, and water system engineers with detailed analysis of pump design differences, performance characteristics, selection methodologies, and installation best practices specific to each well type.

Groundwater Extraction Fundamentals: Why Well Depth Determines Pump Type

The Physics of Groundwater Extraction

Understanding why well depth is the primary determinant of pump type requires examining the physical principles governing water column pressure and atmospheric limitations.

Atmospheric pressure at sea level:
The weight of Earth's atmosphere creates pressure at sea level:

• Atmospheric pressure: 101.325 kPa (1 bar)
• Equivalent to: 10.33 metres of water column
• Physical significance: Pressure gradient capable of supporting maximum 10.33 metres of water column

Implication for shallow well pumps:
Traditional surface-mounted pumps operate above the water source and create suction to pull water upward. Maximum practical suction lift is approximately 7-8 metres (accounting for friction losses and practical limitations). This theoretical limitation is why shallow well systems cannot exceed 25-30 feet (~8 metres).

Deep well pump advantage:
Submersible pumps operate at the water level (or submerged below it), eliminating suction limitations entirely. Pump sits at depth and pushes water upward using pressure head rather than suction pull. This fundamental difference enables extraction from depths hundreds of metres below surface.

Hydrogeological Context: Where Water Exists and How Deep

Groundwater distribution by depth:

Shallow groundwater (0-7.5m):

• Water table location in areas with adequate precipitation
• Recharge: Continuous from rainfall infiltration
• Quality: Variable; susceptible to surface contamination
• Pumping requirement: Minimal (5-15m total head typical)
• Application: Residential, small agricultural, rainwater capture

Intermediate groundwater (7.5-50m):

• First aquifer in many regions
• Recharge: Seasonal or slower than shallow
• Quality: Better protection from surface contamination
• Pumping requirement: Moderate (25-75m total head typical)
• Application: Large residential, small commercial, agricultural

Deep groundwater (50-200m):

• Confined aquifers in many regions
• Recharge: Slow (years to decades between recharge events)
• Quality: Excellent (protected from surface sources)
• Pumping requirement: High (100-300m total head typical)
• Application: Municipal water supply, large agricultural, industrial

Very deep groundwater (>200m):

• Fossil aquifers in many regions
• Recharge: Minimal or none (non-renewable in human timescale)
• Quality: Excellent; stable chemistry
• Pumping requirement: Very high (400-1,000m+ head possible)
• Application: Arid region water supply, geothermal systems

Regional variation (India-specific context):

Alluvial plains (Gangetic, Indus regions):

• Water table: 5-20m typical
• First aquifer: 20-50m depth
• Pump type: Shallow to intermediate submersible

Basalt and volcanic regions (Deccan plateau):

• Water table: 10-50m typical
• Fracture-dependent groundwater
• Pump type: Intermediate to deep submersible (depending on fracture depth)

Crystalline rock regions (most of Peninsular India):

• Water table: 15-40m typical
• Deep fracture-dependent aquifers
• Pump type: Deep submersible required for reliable supply (second and third aquifers often >100m)

Coastal regions:

• Water table: <10m (high water table)
• Saltwater intrusion risk in shallow zones
• Deeper freshwater aquifers available
• Pump type: Deep submersible recommended to access fresh groundwater below saline interface

Shallow Well Submersible Pumps: Design and Application

Definition and Depth Range

Shallow well submersible pump definition:
A pump designed to operate at water depths from surface to approximately 7-8 metres, with total system head requirements (static lift + friction) not exceeding 25-30 metres.

Practical depth limitation explanation:

• Atmospheric pressure limit: ~10.33m
• Practical safety factor (85-90%): ~8-9m maximum
• System head accounting for friction: ~20-25m practical maximum

Pump designs meeting shallow well specification:

Submersible centrifugal pump (single-stage):

• Impeller: One stage (one rotating wheel-like component)
• Head generation: 5-15 metres per stage
• Flow: 50-500 L/minute typical
• Motor: 0.5-5 HP
• Cable: 10-30 metres standard lengths
• Cost: ₹8,000-25,000

Submersible end-suction pump (variant):

• Configuration: Pump and motor in separate housing
• Head: 15-25 metres typical
• Flow: 100-1,000 L/minute
• Motor: 1-10 HP
• Less common than monoblock design
• Cost: ₹15,000-40,000

Submersible jet pump (hybrid technology):

• Configuration: Combines surface pump with submersible components
• Head: Up to 25 metres
• Flow: 50-300 L/minute
• Advantage: Accessible for maintenance (some components surface-mounted)
• Disadvantage: More complex installation
• Cost: ₹20,000-35,000

Key Design Characteristics

Motor specifications for shallow well operation:

HP rating typical range:

• Residential (small demand): 0.5-1.5 HP
• Residential (moderate demand): 1.5-2 HP
• Small agricultural: 2-3 HP
• Small commercial: 3-5 HP

Single-phase vs. three-phase supply:

• Single-phase: Available in most residential areas
• Suitable for: Up to 2 HP (practical limit)
• Voltage: 230V (India standard)
• Advantage: Universal availability
• Disadvantage: Lower efficiency, reduced motor life at >1.5 HP continuous duty

Three-phase supply:

• Voltage: 415V (India standard)
• Available: Industrial areas, larger cities
• Motor efficiency: 5-10% higher than equivalent single-phase
• Suitable for: 2+ HP systems, continuous duty operation
• Cost premium: 10-15% for equivalent HP

Cable specifications for shallow wells:

Submersible cable characteristics:

• Insulation: Rubber-like (more flexible than dry-location cable)
• Voltage rating: 230V or 415V (sized for system)
• Wire gauge: Determined by motor amperage and cable run distance

Cable sizing example — residential 1.5 HP pump:

• Motor FLA (Full Load Amperage): ~8.5A at 230V
• Recommended cable: 4mm² (3-core, single-phase)
• Maximum run: 50m without voltage drop concern
• Cost per metre: ₹8-12

Typical shallow well installation cable length:

• Ground-level well pit: 10-15m cable standard
• Below-grade basement: 20-30m cable typical
• Maximum cost impact: ₹150-300 additional cable cost

Impeller Design for Shallow Wells

Single-stage centrifugal impeller:

• Design: One rotating wheel-shaped component
• Head development: 3-5 metres per stage (for typical impeller)
• Number of stages: 1 stage for 5-15m head
• For >15m head: Multiple stages combined
• Efficiency: 70-80% typical (single-stage centrifugal)
• Applications: Low-head, moderate-flow applications

Multi-stage impeller (still shallow-well application):

• Design: Multiple impellers on single shaft
• Stages: 2-4 stages possible in shallow-well pump body
• Head per stage: 3-5 metres
• Total head: 6-20 metres achievable
• Efficiency: 75-85% (higher with multiple stages optimized)
• Application: Moderate head requirements (15-25m)

Impeller material selections for shallow wells:

Cast iron impellers:

• Material: Standard casting
• Corrosion resistance: Moderate (acceptable for fresh water)
• Wear resistance: Acceptable for non-abrasive water
• Cost: Baseline
• Longevity: 8-12 years (fresh water)
• Best for: Standard water supply (wells in non-corrosive areas)

Stainless steel impellers:

• Material: SS304 or SS316 casting
• Corrosion resistance: Excellent (essential for saltwater, acidic water)
• Cost: 40-80% premium
• Longevity: 15-20 years (even in corrosive environments)
• Best for: Coastal areas, high-iron or acidic water

Aluminium bronze impellers:

• Material: Aluminium-copper alloy
• Corrosion resistance: Excellent (superior to cast iron)
• Cost: 30-60% premium
• Longevity: 12-15 years
• Best for: Brackish water, moderately corrosive environments

Installation and Operational Characteristics

Well casing and pump fitting:

Standard well pit configuration:

• Well diameter: 100-150mm typical (4-6 inches)
• Pump body diameter: 75-100mm (3-4 inches)
• Clearance: 10-25mm (necessary for insertion and removal)
• Guide rails: Often installed for pump positioning
• Sump depth: 1-3 metres (accumulation of sediment below pump intake)

Pump positioning in shallow well:

• Installation depth: Water surface depth + 0.5-1m submerged below surface
• Float switch positioning: 0.5-1m above minimum expected water level
• Discharge connection: At well pit top (convenient for surface work)
• Accessibility: Easy removal (minimal equipment required)

Power supply and control for shallow wells:

Pressure switch operation (automatic control):

• Function: Automatically starts pump when system pressure drops below set point
• Set points typical: Start at 2-2.5 bar; stop at 3.5-4 bar
• Drawback: Frequent cycling if demand is continuous
• Advantage: Fully automatic operation; user-transparent

Float switch operation (alternative):

• Function: Automatically starts pump when water level drops to minimum point
• Operation: Mechanical float arm trips electrical switch
• Advantage: Prevents well from running dry (safety feature)
• Disadvantage: Less precise pressure control
• Cost: Lower than pressure switch systems

Timer-based operation (intermittent duty):

• Function: Pump operates on preset schedule (irrigation systems)
• Advantage: Predictable operation; low pump cost
• Disadvantage: Less responsive to demand changes
• Application: Agricultural irrigation, non-critical water systems

Shallow Well Pump Sizing Methodology

Step 1: Determine daily water requirement:

Residential example (4-person household):

• Per-capita daily water: 150-200 litres
• Total daily requirement: 600-800 litres
• Typical usage pattern: Morning peak (200L over 2 hours), evening peak (200L over 2 hours), distributed use throughout day
• Storage tank capacity: 500-1,000 litres (4-8 hour buffer, reducing pump cycling)

Step 2: Calculate peak hour demand:

Morning routine analysis:

• 2 showers: 2 × 50L = 100L
• 2 toilet flushes: 2 × 10L = 20L
• Sink, bathroom washing: 20L
• Kitchen: 20L
• Total 30-minute peak: 160L
• Peak demand rate: 160L / 30 min = 5.3 L/minute sustained

Conservative design margin (50%):

• Required flow: 5.3 × 1.5 = 8 L/minute minimum
• Standard pump selection: 10-15 L/minute (incorporating safety factor)

Step 3: Determine system head requirement:

Static head calculation:

• Water table depth: 5 metres below surface
• Surface to discharge elevation: 2 metres (ground elevation to storage tank height)
• Total static lift: 7 metres

Friction losses:

• Suction line (5m @ 5L/min): 0.5m head equivalent
• Discharge line (30m @ 5L/min through 25mm pipe): 2m head equivalent
• Fittings and check valve: 0.5m head equivalent
• Total friction: 3m

Total dynamic head (TDH):

• TDH = Static head + Friction losses = 7 + 3 = 10 metres

Pump specification:

• Flow: 15 L/minute (incorporating safety factor)
• Head: 12-15 metres (including pressure for storage tank fill)
• Pump type: 1 HP submersible pump (typical for this duty)
• Cost: ₹12,000-18,000

Deep Well Submersible Pumps: Design and Application

Definition and Depth Range

Deep well submersible pump definition:
A pump designed to operate at water depths of 25+ metres, typically extending to 100-300+ metres, with total system head requirements exceeding 50 metres.

Design principle enabling deep operation:

• Multi-stage impeller configuration (4-16+ stages typical)
• Each stage generates pressure head (typically 3-5 metres per stage)
• Accumulated pressure enables lifting water from significant depths
• Example: 8-stage pump generates ~32-40m of head (sufficient for 35m water depth + friction)

Pump designs for deep wells:

Submersible borewell pump (most common in India):

• Impeller stages: 4-16 stages typical
• Head generation: 12-80 metres total
• Flow: 10-500 L/minute typical
• Motor: 0.5-15+ HP
• Cable: 50-300+ metres standard lengths
• Casing: Slender (25-50mm diameter typical for tight boreholes)
• Cost: ₹15,000-1,00,000+ (depending on depth capability and HP)

Turbine pump (vertical turbine variant):

• Configuration: Motor at surface, extended shaft to submerged impeller assembly
• Application: Very deep wells, open sumps
• Advantage: Motor accessible for maintenance
• Disadvantage: More complex, longer installation time
• Less common in small installations; more common in large municipal/agricultural

Submersible turbine pump (borehole variant):

• Configuration: Similar to borewell pump but larger diameter
• Application: Large-diameter boreholes (>100mm)
• Advantage: Higher flow capacity at same head
• Disadvantage: Requires larger diameter well
• Cost: Premium (specialized equipment)

Key Design Characteristics

Multi-stage impeller systems (critical design difference):

Stage configuration:

• Each stage consists of impeller rotating within stationary diffuser
• Impeller accelerates liquid outward (centrifugal force)
• Diffuser converts velocity to pressure
• Multiple stages stack in series (output of one feeds input of next)
• Result: Cumulative pressure development

Pressure development per stage:

• Typical stage: 3-5 metres head per stage
• Efficiency consideration: Each additional stage reduces overall efficiency (more friction losses)
• Optimal stage count: Balance between head requirement and efficiency

Real-world example — 8-stage pump specification:

Well scenario:

• Water table depth: 75 metres
• System elevation gain: 5 metres
• Discharge pipe friction: 8 metres
• Total required head: 75 + 5 + 8 = 88 metres

Pump selection:

• Stages needed: 88 / 4 (metres per stage) = 22 stages (excessive; impractical)
• Realistic selection: 16-20 stages for 80-100m head range
• Actual pump: 18-stage pump rated 90m @ 15 L/minute
• Motor: 3-5 HP (higher power required for head development)
• Cost: ₹40,000-60,000

Motor specifications for deep well operation:

HP rating typical range (by depth and flow):

• Shallow-intermediate (25-50m head): 1-2 HP
• Intermediate-deep (50-100m head): 2-5 HP
• Deep (100-150m head): 5-10 HP
• Very deep (150-300m head): 10-20+ HP

Efficiency class importance for deep wells:

Deep wells operate continuously or near-continuously, making efficiency critical:

IE1 (Standard efficiency) vs. IE3 (Premium efficiency):

• 5 HP continuous-duty motor: IE1 at 85% efficiency vs. IE3 at 92% efficiency
• 8,000 operating hours annually (typical for groundwater pump with modest usage)
• IE1 power requirement: 5 HP / 0.85 = 5.88 kW required
• IE3 power requirement: 5 HP / 0.92 = 5.43 kW required
• Annual energy cost difference: (5.88 - 5.43) × 8,000 × ₹8 = ₹36,000 annually

10-year impact:

• Energy cost premium for IE1: ₹3,60,000
• Motor cost premium for IE3: ₹20,000-30,000
• Payback: 6-12 months (IE3 is financially superior)

Cable specifications for deep wells (critical difference from shallow wells):

Extended cable requirements:

• Deep well 100m depth: Minimum 110m cable required (accounting for slack)
• Deep well 200m depth: 220m cable typical
• Cable cost at ₹10-15/metre: ₹1,100-3,300 for cable alone

Cable sizing for voltage drop:

Voltage drop formula:

• Voltage drop (%) = (2 × Length × Current × Resistance) / Voltage

Example — 5 HP pump at 100m depth:

• Motor current at 415V three-phase: ~8A
• Cable length: 110m (100m well + 10m slack)
• Acceptable voltage drop: <5% (recommended: <3%)
• Required cable size: 6mm² (calculated from formula)
• 3-core cable cost: 110m × ₹12 = ₹1,320

Larger pump example — 10 HP at 150m depth:

• Motor current: ~16A
• Cable length: 160m
• Required cable size: 10mm² (larger to accommodate longer distance and higher current)
• 3-core cable cost: 160m × ₹20 = ₹3,200

Cable cost as percentage of total pump cost:

• Shallow well (20m cable): ₹200-300 (1-2% of pump cost)
• Deep well (100m cable): ₹1,200-1,500 (3-5% of pump cost)
• Very deep well (200m cable): ₹2,500-3,500 (5-8% of pump cost)

Cable selection impact on performance:

Undersized cable consequences:

• Voltage drop at motor: Exceeds 5%
• Motor current: Increases (to compensate for voltage loss)
• Motor temperature: Rises 5-10°C above normal
• Motor efficiency: Drops (multiplying energy waste)
• Motor life: Reduced 20-30% (thermal stress)
• Annual energy cost: ₹30,000-50,000 higher than properly-sized cable

Proper cable sizing cost: ₹500-1,000 additional investment
Savings over motor life: ₹2,00,000-3,00,000 (preventing premature failure)

Impeller Design for Deep Wells

Multi-stage centrifugal impellers (standard configuration):

Stage design:

• Impeller: High-speed wheel (typically 2,900 rpm at 50 Hz)
• Diffuser: Stationary component guiding flow from impeller
• Pressure generation: Centrifugal acceleration creates outward force, resulting in pressure rise
• Flow path: Axial input → centrifugal acceleration → diffuser exit → next stage input

Number of stages and performance:

4-stage pump:

• Total head: 12-20 metres
• Flow: 50-200 L/minute typical
• Application: Shallow-intermediate wells (25-30m depth)
• Cost: ₹15,000-25,000

8-stage pump:

• Total head: 25-40 metres
• Flow: 20-100 L/minute typical
• Application: Intermediate wells (40-60m depth)
• Cost: ₹25,000-40,000

12-stage pump:

• Total head: 40-60 metres
• Flow: 15-75 L/minute typical
• Application: Deep wells (70-90m depth)
• Cost: ₹35,000-55,000

16-stage pump:

• Total head: 50-80 metres
• Flow: 10-50 L/minute typical
• Application: Very deep wells (100-150m depth)
• Cost: ₹50,000-80,000

20+ stage pump:

• Total head: 60-100+ metres
• Flow: Variable (typically 10-30 L/minute at maximum head)
• Application: Extreme depth (150-300+ metres)
• Cost: ₹80,000-1,50,000+

Impeller material selections for deep wells:

Cast iron impellers (standard):

• Corrosion resistance: Moderate (acceptable in fresh groundwater)
• Wear resistance: Good (abrasive particle tolerance)
• Cost: Baseline
• Longevity: 8-15 years (groundwater service)
• Best for: Standard fresh groundwater wells

Stainless steel impellers (SS304/SS316):

• Corrosion resistance: Excellent (essential for saline/acidic groundwater)
• Cost: 50-100% premium
• Longevity: 15-25 years (even in corrosive groundwater)
• Best for: Coastal areas, high-iron water, acidic aquifers

High-chrome impellers (12-14% chromium iron):

• Corrosion resistance: Superior to cast iron, approaching stainless steel
• Cost: 30-60% premium (less expensive than SS)
• Longevity: 12-18 years
• Best for: Moderately corrosive groundwater (balance of cost and performance)

Installation and Operational Characteristics

Well casing and pump fitting (deep wells):

Borehole configuration (typical deep well):

• Borehole diameter: 50-100mm (2-4 inches)
• Pump submersible section diameter: 25-50mm
• Clearance: 5-15mm (minimal space in tight boreholes)
• Screen/filter: Installed at aquifer depth (allows water inflow, prevents sediment)
• Sump depth: 1-2 metres below pump intake

Pump installation depth determination:

Critical principle: Pump must be positioned to maintain continuous submersion:

• Minimum water level: During dry season or peak usage
• Pump setting: At least 1-2 metres below minimum water level
• Safety margin: Prevents pump intake from drawing air (cavitation)

Example calculation:

Well statistics:

• Water level (static, full recharge): 60m below surface
• Water level (minimum, dry season): 75m below surface
• Pump flow: 20 L/minute (modest usage)
• Expected drawdown during peak usage: 3-5 metres additional

Pump setting determination:

• Minimum water level: 75m
• Drawdown margin: 5m
• Safety buffer: 2m (maintain submersion when demand is maximum)
• Pump intake setting depth: 75 + 5 + 2 = 82 metres below surface

Discharge check:

• Pump intake: 82m depth
• Static water level (normal operation): 60m depth
• Submersion depth margin: 82 - 60 = 22 metres (excellent; no cavitation risk)

Power supply and control for deep wells:

Pressure switch operation (standard for deep wells):

• Function: Automatically starts pump when pressure drops below set point
• Operation: Pressurized tank has air cushion above water; when water drawn out, pressure drops, triggering pump start
• Control precision: Excellent (maintains consistent system pressure)
• Cycling frequency: Depends on water demand and tank volume
• Drawback: Requires pressurized tank (capital cost ₹15,000-30,000 typical)

Float switch operation (alternative, if tank at well location):

• Function: Starts pump when water level drops below minimum
• Application: Non-pressurized storage tank at well
• Advantage: Simpler control, lower cost
• Disadvantage: Cannot maintain constant system pressure (intermittent operation)

Timer-based operation (agricultural application):

• Function: Pump operates on preset schedule (early morning, evening)
• Advantage: Predictable power consumption (load scheduling with utility)
• Disadvantage: Less responsive to actual demand changes
• Application: Agricultural wells with irrigation schedule

Off-grid operation (solar-powered deep wells):

• Solar array sizing: Matched to peak pump power requirement
• Battery storage: Not typically used (pump runs during daylight when solar available)
• Advantage: Zero operational cost after installation
• Disadvantage: No operation at night; seasonal variation requires oversizing
• Application: Rural areas without reliable grid power

Deep Well Pump Sizing Methodology

Step 1: Determine water requirement and usage pattern:

Agricultural well example (2 hectares irrigation):

• Crop water requirement: 60mm per irrigation cycle (summer)
• 2 hectares × 60mm = 120 m³ water per irrigation
• Irrigation frequency: Every 5-7 days (summer)
• Daily average demand: 120 m³ / 5 days = 24 m³/day = 1,000 L/hour

Step 2: Assess well capacity and aquifer characteristics:

Aquifer test (pump test):

• Pump water at constant rate, monitor water level decline
• Calculate aquifer yield and transmissivity
• Determine safe yield (maximum sustainable extraction)
• Account for seasonal variation (dry season vs. monsoon)

Example results:

• Aquifer yield: 40 L/minute sustainable (1,440 L/hour = 35 m³/day)
• Maximum demand: 24 m³/day
• Conclusion: Aquifer can sustain required demand with margin

Step 3: Calculate required head:

Static head:

• Water table depth: 70m (at anticipated minimum level)
• Surface elevation: 5m above water discharge point
• Total static lift: 70m

Friction losses:

• Well and discharge pipe (100m total @ 25 L/minute): 5m head equivalent
• Fittings and check valve: 0.5m
• Total friction: 5.5m

System pressure (if pressurized tank):

• Desired tank pressure: 3 bar (maintains pressure during usage)
• Equivalent head: 30m

Total dynamic head:

• TDH = Static 70 + Friction 5.5 + System pressure 30 = 105.5 metres

Step 4: Select pump and motor:

Pump specification:

• Flow: 25 L/minute (slightly above average demand, incorporates safety factor)
• Head: 110m (accommodates slightly higher than calculated)
• Stages required: 110 / 4 = 27.5 → Select 28-stage pump
• Cost: ₹70,000-90,000

Motor specification:

• Motor power: 5-7.5 HP (determined from pump duty curve at 25 L/min @ 110m)
• Efficiency class: IE3 (justifies cost premium through energy savings)
• Supply: Three-phase 415V (more efficient than single-phase at this power level)
• Cost: ₹20,000-30,000

Cable specification:

• Cable length: 110m (70m well depth + 40m surface routing)
• Cable size: 6mm² (calculated for voltage drop)
• Cost: ₹1,300

Total system cost:

• Pump: ₹80,000
• Motor: ₹25,000
• Cable: ₹1,300
• Installation labor: ₹10,000-15,000
• Total: ₹1,16,300-1,21,300

Comparative Performance Analysis

Energy Consumption Comparison

Scenario: Extracting 20,000 litres daily from different depths

Shallow well scenario (12m average depth):

• Total head: 15m (12m static + 3m friction)
• Flow rate: 50 L/minute required (400 minutes = 6.7 hours operation)
• Pump: 1 HP, IE2 efficiency (87%)
• Motor power: 1 HP / 0.87 = 1.15 kW
• Daily energy: 1.15 × 6.7 = 7.7 kWh
• Annual energy: 7.7 × 350 days = 2,695 kWh
• Annual cost @ ₹8/kWh: ₹21,560

Deep well scenario (70m average depth):

• Total head: 85m (70m static + 15m friction/system pressure)
• Flow rate: 25 L/minute (800 minutes = 13.3 hours operation)
• Pump: 5 HP, IE3 efficiency (92%)
• Motor power: 5 HP / 0.92 = 5.42 kW
• Daily energy: 5.42 × 13.3 = 72 kWh
• Annual energy: 72 × 350 days = 25,200 kWh
• Annual cost @ ₹8/kWh: ₹2,01,600

Comparative observation:

• Energy cost difference: ₹2,01,600 - ₹21,560 = ₹1,80,040 annually
• This reflects reality: Deep groundwater extraction is energy-intensive
• Justification: Deep aquifers provide more reliable, higher-quality water

Maintenance and Longevity Comparison

Shallow well pumps:

• Maintenance interval: Quarterly (easy access, inspection routine)
• Seal replacement: Every 3-5 years typical
• Expected service life: 8-12 years
• Accessibility: Easy (pump removable in <1 hour)
• Cost of maintenance: ₹2,000-5,000 annually

Deep well pumps:

• Maintenance interval: Annual or biennial (difficult access, professional service required)
• Seal replacement: Every 5-8 years typical (longer life due to cleaner groundwater)
• Expected service life: 12-20 years
• Accessibility: Difficult (pump removal requires professional equipment)
• Cost of maintenance: ₹5,000-15,000 annually (higher labor due to complexity)

Longevity advantage of deep wells:

• Cleaner groundwater (fewer sediment particles)
• More stable water chemistry (less corrosion)
• Reduced surface contamination risk (better encapsulation)
• Result: 20-40% longer equipment life typical

Selection Decision Framework

Decision Matrix for Pump Type Selection

Key assessment questions:

Question	Answer Shallow Well	Answer Deep Well
Water table depth?	<7m depth	>25m depth
Available groundwater quality?	Shallow aquifer accessible	Deeper aquifer required
Water demand?	Low to moderate (<30 m³/day)	Low to high (variable)
Available power supply?	Single-phase acceptable	Three-phase preferred
Budget for installation?	Low (₹15,000-25,000)	Higher (₹80,000-1,50,000)
Access for maintenance?	Easy (preferred)	Difficult (tolerable)
Long-term supply reliability?	Seasonal variation risk	Reliable year-round

Regional Suitability Analysis (India Context)

Shallow well regions:

• Gangetic plains during monsoon (water table <7m)
• Coastal areas with high water table (<5m)
• River valleys and flood plains
• Agricultural areas with annual recharge

Deep well regions:

• Deccan plateau (crystalline bedrock; deep fracture aquifers)
• Arid and semi-arid regions (sparse rainfall; deep aquifers critical)
• Coastal regions (deep freshwater above saline interface)
• Urban areas (shallow aquifers contaminated; deep wells provide quality water)

Installation Best Practices

Shallow Well Installation Procedure

Step 1: Site assessment (1 hour):

1. Verify water table depth by well digging/testing
2. Measure distance from well to usage point
3. Assess power supply location and type (single-phase vs. three-phase)
4. Identify discharge elevation (tank location, height)

Step 2: Well preparation (2-4 hours):

1. Clean well pit of debris and sediment
2. Install well screen (prevents sand entry)
3. Install guide rails (pump positioning)
4. Test well yield (temporary pump test if available)

Step 3: Pump installation (1-2 hours):

1. Lower pump into well using guide rails
2. Connect discharge pipe (with check valve)
3. Secure discharge pipe (prevent movement)
4. Position float switch (if applicable)

Step 4: Electrical connection (1-2 hours):

1. Run submersible cable to control location
2. Install pressure switch and tank (if pressurized system)
3. Wire control panel with motor starter
4. Install circuit protection (breaker, GFCI)
5. Test operation (run pump 1-2 hours, verify flow and pressure)

Total installation time: 5-10 hours
Professional cost: ₹5,000-10,000

Deep Well Installation Procedure

Step 1: Borehole development (pre-installation, professional):

1. Drill borehole to target depth
2. Install well casing (PVC or steel pipe)
3. Install well screen at aquifer depth
4. Develop well (pump large volumes to clear sand/sediment)
5. Conduct pump test (determine aquifer yield)

Step 2: Pump specification and procurement (1-2 weeks):

1. Calculate required head (from aquifer depth and system needs)
2. Select pump and motor (appropriate stages and HP)
3. Order submersible cable (correct length and gauge)
4. Order control equipment (pressure switch, tank, starter)

Step 3: Pre-installation preparation (1-2 days):

1. Assemble extended cable (if longer than standard lengths)
2. Install cable guide in borehole (prevents kinking)
3. Test cable insulation (megohmmeter test)
4. Prepare pressure tank and control panel

Step 4: Pump installation in borehole (2-4 hours, professional):

1. Lower pump carefully into borehole using cable
2. Lower cable gradually, avoiding kinks or tight bends
3. Connect discharge line at surface
4. Connect electrical cable to control panel

Step 5: System commissioning (2-4 hours):

1. Fill pressure tank to operational level
2. Prime pump (fill discharge line with water)
3. Start motor and operate at full load
4. Monitor discharge flow and pressure
5. Adjust pressure switch settings (start/stop points)
6. Run pump 2-4 hours to verify stable operation

Step 6: Training and documentation (1 hour):

1. Explain control system operation to user
2. Document pump specifications and settings
3. Establish maintenance schedule
4. Provide emergency contact information

Total professional installation time: 2-4 days (including borehole development and system commissioning)
Professional cost: ₹20,000-40,000

Troubleshooting and Common Problems

Shallow Well Issues

Problem: Pump stops during operation (runs for 5-10 minutes, then stops)

Causes:

1. Float switch triggered mistakenly (water level too low)
2. Air entering pump (suction line leak)
3. Thermal overload trip (motor overheating)

Solutions:

1. Adjust float switch position (ensure minimum depth margin)
2. Inspect suction line for visible leaks; tighten all connections
3. Check discharge line for blockage (causing back-pressure and overheating)

Problem: Reduced discharge flow (50% of normal or less)

Causes:

1. Intake strainer clogged (sand/sediment accumulation)
2. Discharge line blockage (mineral deposits, debris)
3. Pump impeller erosion (wear from abrasive water)

Solutions:

1. Remove strainer and clean (rinse with clean water, gentle brush)
2. Check discharge line for visible blockage; flush if necessary
3. Monitor water quality; if sand present, install sediment filter upstream

Deep Well Issues

Problem: Pump delivers very low flow (10-20% of expected)

Causes:

1. Water level dropped below pump setting (air in impeller)
2. Discharge line partially blocked (sediment accumulation over time)
3. Pump impeller wear (prolonged operation with sandy water)

Solutions:

1. Pull pump and verify water level; reset if necessary
2. Check discharge line pressure; flush if needed
3. Replace pump if wear excessive (signs: reduced flow, increased current draw)

Problem: Motor current elevated (30-50% above nameplate)

Causes:

1. Voltage drop in extended cable (undersized cable for distance)
2. Back-pressure excessive (system head higher than pump rated)
3. Impeller obstruction (debris, mineral deposits)

Solutions:

1. Measure voltage at pump motor terminals; if >5% below supply voltage, upgrade cable
2. Check system pressure; if exceeding pump rating, assess for blockages
3. Remove pump and inspect impeller; clean if deposits present

Maintenance Schedules

Shallow Well Annual Maintenance

Quarterly (every 3 months):

• Visual inspection of pump and connections
• Check float switch operation
• Monitor for unusual noise or vibration

Annual:

• Remove pump for cleaning and inspection
• Inspect impeller and seal
• Check electrical insulation (megohmmeter test)
• Lubricate motor bearings (if applicable)
• Test pressure switch settings

Cost: ₹2,000-5,000 annually

Deep Well Annual Maintenance

Annual (professional service required):

• Monitor system pressure and flow
• Record discharge rate and compare to baseline
• Check for unusual sounds or vibration
• Inspect cable for damage
• Test electrical system

Biennial (every 2 years, professional):

• Pull pump for full inspection
• Clean impellers and check for erosion
• Inspect seal condition
• Replace cable if insulation aging observed

Cost: ₹5,000-15,000 annually (professional labor dominates)

Conclusion: Matching Pump Type to Well Depth and Application

Shallow well and deep well submersible pumps represent fundamentally different engineering solutions optimized for distinct hydrogeological and operational contexts. The shallow well pump prioritizes simplicity, low cost, and easy maintenance for water sources near the surface. The deep well pump prioritizes pressure generation, efficiency, and durability for accessing groundwater from significant depths.

The selection between these pump types should never be based on budget alone. A shallow well pump installed in a deep well application will fail within months. A deep well pump oversized for shallow well operation wastes energy and capital unnecessarily.

Proper pump selection requires:

1. Accurate assessment of water source depth
2. Realistic estimation of water demand
3. Understanding of groundwater quality and stability
4. Evaluation of available power supply
5. Calculation of system head requirement
6. Professional guidance from hydrogeologists or experienced well contractors

With systematic evaluation and proper installation, either pump type reliably supplies water for decades. Improper selection or installation creates chronic problems, high operational costs, and equipment failure. The investment in proper specification and professional installation yields benefits far exceeding its modest additional cost.
