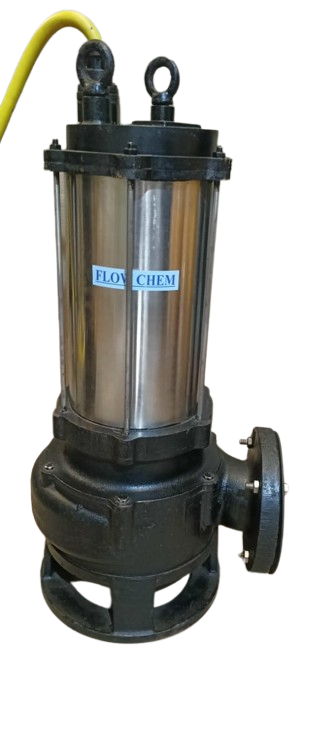

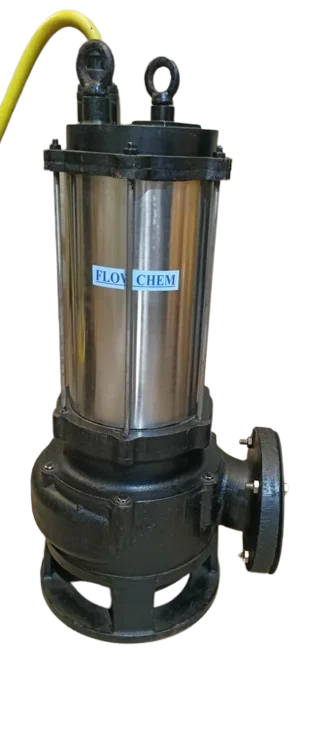

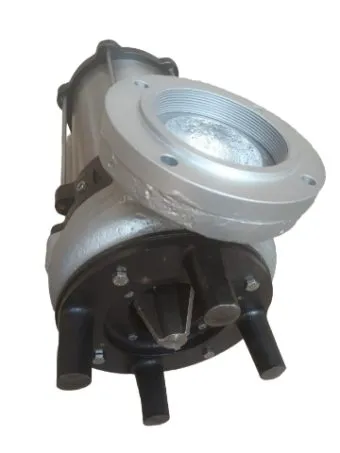

4-Pole Submersible Sewage Pump — 1440 RPM Continuous Duty for CETP, STP & ETP
Heavy-duty 4-pole submersible sewage pump running at 1440 RPM for reduced wear and longer service life. Handles soft solids up to 70mm. Designed for continuous duty in CETP, STP, and ETP applications across India.
About 4-Pole Submersible Sewage Pumps
Flow Chem 4-pole submersible sewage pumps are purpose-built for continuous 24/7 duty in demanding treatment plant conditions. Designed and manufactured at our ISO 9001:2015 certified facility in Gujarat.
A 4-pole motor runs at approximately 1440 RPM — half the speed of standard 2-pole pumps (2850 RPM). This lower speed dramatically reduces wear on all moving parts: mechanical seals last longer, bearing life is extended, impeller erosion is reduced, and motor winding temperature stays lower.
Available from 3 HP to 15 HP in three-phase configuration only. The wider impeller clearances at 1440 RPM allow the pump to handle soft solids up to 70mm — larger than the 60mm capacity of 2-pole sewage pumps.
Key Features
Engineered for extended service life in continuous duty sewage and slurry applications
1440 RPM operation reduces mechanical stress on seals, bearings, and impeller. Designed for 24/7 operation in CETP, STP, and ETP plants without rest periods.
Half the speed means significantly reduced vibration. Less wear on mechanical seals, bearings, and motor windings. Extends pump service life by 30-50% compared to 2-pole pumps.
Wider impeller clearances at 1440 RPM accommodate soft solids up to 70mm — larger than standard 2-pole sewage pumps (60mm). Handles bigger organic solids without clogging.
Double mechanical seals with oil chamber provide reliable motor protection during extended submerged operation. Reduced speed means longer seal life compared to high-speed pumps.
Lower RPM means lower motor winding temperature. Reduced heat generation extends insulation life and prevents thermal overload trips during continuous 24/7 operation.
Compatible with guide rail auto-coupling systems for easy installation and removal without entering the sump. Essential for continuous duty plants where maintenance windows are limited.
Technical Specifications
Flow Chem 4-pole sewage pump models for continuous duty treatment plant applications
| Specification | 4-Pole Models (1440 RPM) |
|---|---|
| Motor Speed | 1440 RPM (4-pole) |
| Motor Power | 3 HP to 15 HP |
| Power Supply | 3-Phase, 415V, 50Hz |
| Flow Range | Up to 80 m³/hr |
| Head Range | Up to 20 meters |
| Max Solid Size | Up to 70mm (soft solids) |
| Insulation Class | Class F |
| Sealing | Double mechanical seal + oil chamber |
| Material | Cast iron (FC 250 grade) |
| Impeller Type | Semi-open non-clog / vortex |
| Discharge Size | 50mm to 150mm |
| Duty Cycle | Continuous (S1) |
Custom specifications available for specific CETP, STP, and ETP requirements. Contact our engineering team for pump selection assistance.
Applications
Flow Chem 4-pole sewage pumps serve continuous duty applications across India's treatment plants
CETP Plants
Common effluent treatment plant pumping for shared industrial facilities. 24/7 continuous duty operation handles combined effluent from multiple industries reliably.
STP Recirculation
Sewage treatment plant recirculation and return activated sludge pumping. Low speed ensures long service life in continuous recirculation loops.
ETP Transfer
Effluent treatment plant continuous transfer pumping. Handles industrial effluent with solids, chemicals, and abrasive particles at lower speed for extended life.
Sludge Return
Return activated sludge pumping in biological treatment processes. Lower speed reduces shear damage to active biological floc compared to high-speed pumps.
Industrial Sumps
Industrial sump and pit pumping for factories, refineries, and processing plants. Continuous duty capability handles round-the-clock waste water collection.
Lift Stations
Municipal sewage lift station pumps for residential and commercial areas. Reduced noise from lower speed is suitable for lift stations near populated areas.
2-Pole vs 4-Pole: Which Is Right for You?
Choose the right motor speed for your application requirements
4-Pole Pumps (1440 RPM) — This Page
Best for: Continuous duty applications where extended service life and reduced maintenance are priorities.
Lower speed means reduced wear on seals, bearings, and impellers, extending service life by 30-50%. Lower vibration, noise, and motor temperature. Handles larger solids (70mm vs 60mm). Essential for 24/7 CETP, STP, and ETP operations.
Typical uses: STP recirculation, CETP transfer, sludge return, continuous duty industrial sumps.
2-Pole Pumps (2850 RPM)
Best for: High flow applications where space is limited and compact pump size is important.
Higher speed means smaller pump dimensions for the same flow rate. Ideal for sewage lift stations, transfer pumping, and applications where installation space is restricted. Higher velocity provides better self-cleaning action.
Typical uses: Municipal lift stations, STP inlet pumping, septic tank pumping, building drainage.
Not sure which is right for your project? Contact our engineering team for free pump selection assistance.
Explore Our Full Product Range
Comprehensive range of industrial submersible pumps for all applications

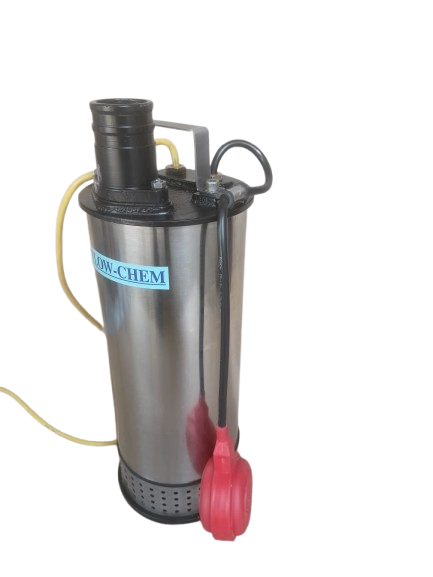

Submersible Sewage / Sludge Pump
Learn More →

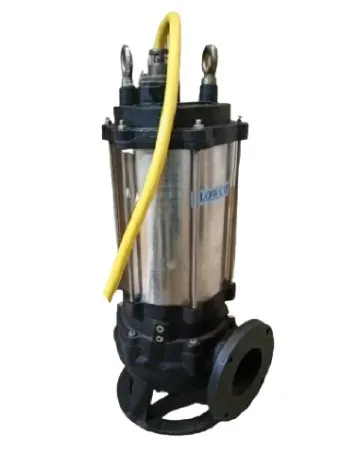

Submersible Drainage Pump
Learn More →

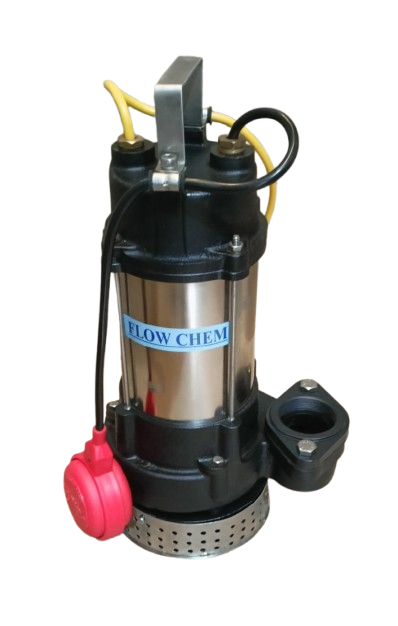

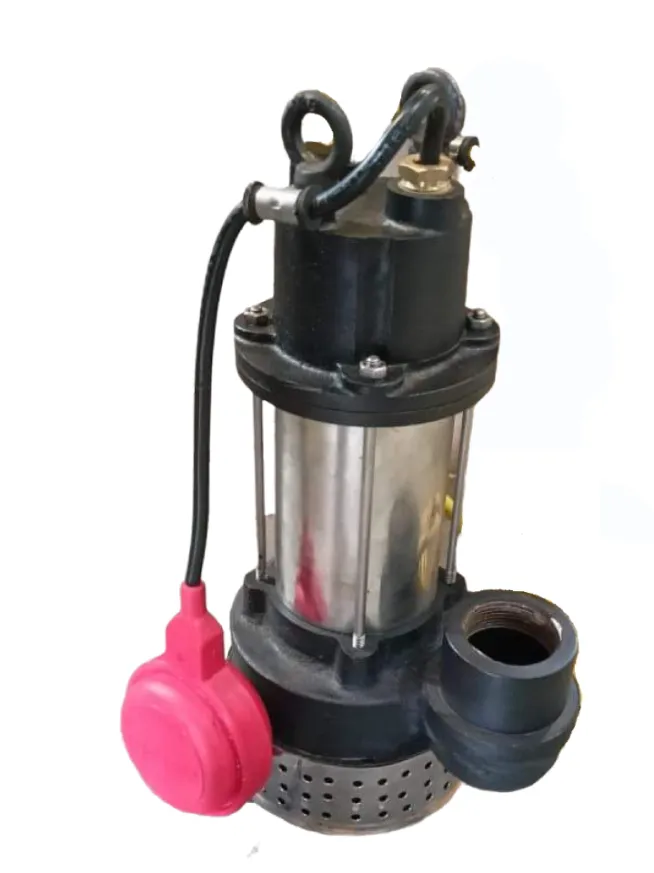

Submersible Waste Water Pump
Learn More →

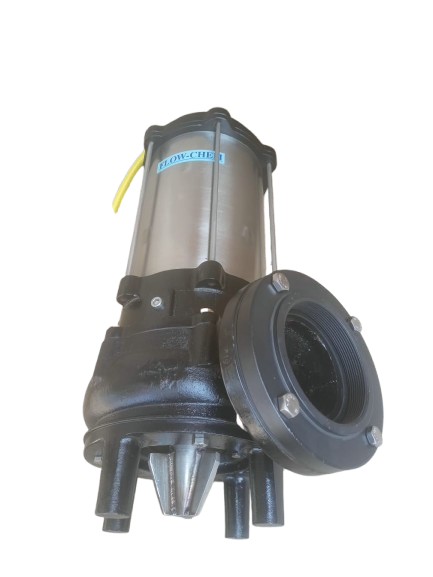

Submersible Agitator Slurry Pump
Learn More →

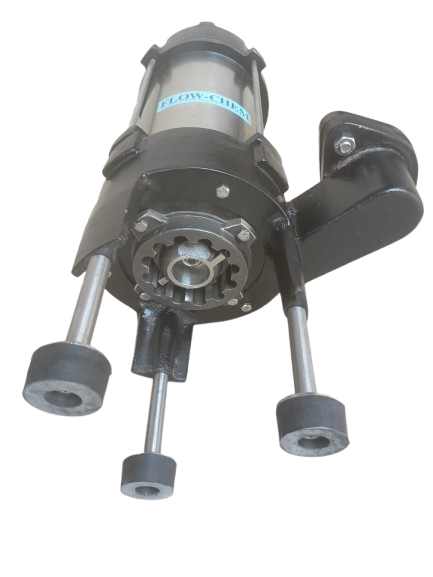

Submersible Cutter Pump
Learn More →

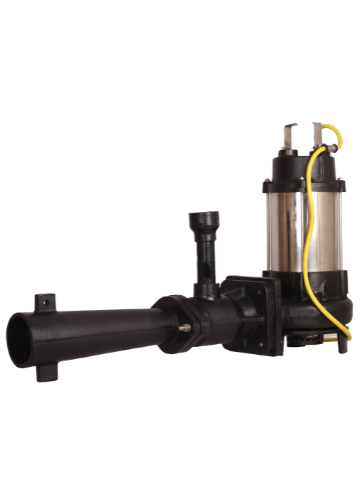

Submersible Jet Aerator Pump
Learn More →Why Choose Flow Chem 4-Pole Sewage Pumps
Trusted by CETP, STP, and ETP operators across India for reliable continuous duty pumping
🏆 20+ Years Experience
Manufacturing 4-pole sewage pumps since 2002. Over two decades of field-proven continuous duty performance in Indian treatment plant conditions.
✅ ISO 9001:2015 Certified
Every 4-pole pump undergoes comprehensive testing including 24-hour continuous run test, seal integrity, motor insulation, and vibration analysis. Test certificates provided with each pump.
🔧 Free Technical Consultation
Our engineering team helps you select the right pump model based on flow rate, head, solid content, duty cycle, and treatment plant configuration. No obligation, no charge.
🛡️ Extended Seal Life
4-pole speed (1440 RPM) extends mechanical seal life by 30-50% compared to 2-pole pumps. Lower peripheral speed means less seal face wear and fewer seal replacements over the pump lifetime.
🚚 Quick Delivery Across India
Standard models dispatched within 2-5 working days. We deliver to all states across India through our logistics network. Emergency delivery available for treatment plant failures.
🤝 After-Sales Support
Dedicated after-sales team at our Mumbai office. Spare parts availability, maintenance guidance, troubleshooting support, and field service for the lifetime of your pump.
Frequently Asked Questions
What is the difference between 2-pole and 4-pole submersible pumps?
2-pole pumps run at 2850 RPM and 4-pole pumps run at 1440 RPM. The lower speed of 4-pole pumps reduces wear on seals, bearings, and impellers, extending service life by 30-50%. 4-pole pumps are recommended for continuous duty applications like CETP, STP, and ETP where the pump runs 24/7.
What does CETP, STP, and ETP mean?
CETP = Common Effluent Treatment Plant (shared facility for multiple industries). STP = Sewage Treatment Plant (municipal or residential sewage). ETP = Effluent Treatment Plant (individual industrial facility). All three require continuous-duty pumps for reliable 24/7 operation.
Why is 1440 RPM better for continuous duty?
1440 RPM produces less vibration, lower bearing loads, reduced seal wear, and lower motor temperature compared to 2850 RPM. These factors combine to significantly extend pump life in 24/7 operation. The trade-off is slightly lower flow rate per HP, which is compensated by using larger pump models.
What is the typical lifespan of a 4-pole Flow Chem pump?
With proper installation and maintenance, Flow Chem 4-pole sewage pumps typically last 10-18 years in continuous duty — significantly longer than 2-pole pumps (8-12 years). The reduced operating speed is the primary factor in extended service life.
Do you provide installation services for 4-pole pumps?
Yes, Flow Chem provides professional pump installation services across India. Our team handles site assessment, pit preparation, pump installation, guide rail fitting, electrical connections, commissioning, and operator training.
