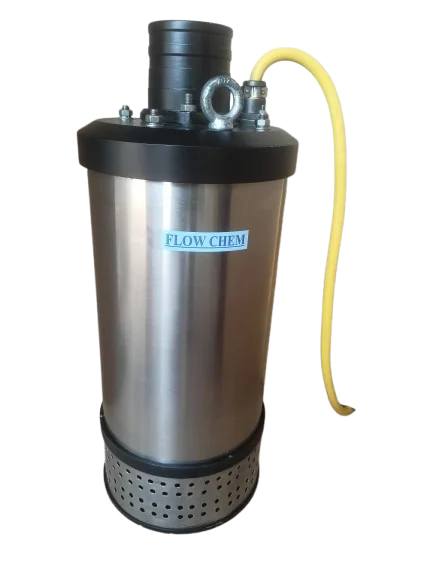

Submersible Drainage Pump — Dewatering Pump Manufacturer India
High-performance submersible drainage pumps for construction dewatering, flooded basements, tunneling, mining, and open pit drainage. Flow rates up to 250 m³/hr, heads up to 35 meters.
About Submersible Drainage Pumps
Flow Chem submersible drainage pumps are designed for efficient removal of clean water, rainwater, and lightly contaminated water from construction sites, flooded areas, tunnels, mines, and open pits. Built for the toughest dewatering conditions in India.
Manufactured at our ISO 9001:2015 certified facility in Gujarat, these pumps feature heavy-duty cast iron construction, vortex or semi-open impeller designs that handle suspended solids, and motors rated for continuous duty in demanding environments. Available in single-phase and three-phase configurations.
Unlike sewage pumps designed for raw wastewater, drainage pumps are optimized for clean to mildly turbid water — making them ideal for construction site pumping, basement flood control, and surface water management where the primary concern is high volume water removal.
Key Features
Engineered for reliable, high-volume water removal in the toughest conditions
Flow rates up to 250 m³/hr with heads up to 35 meters. Efficient hydraulic design ensures maximum water removal with minimum energy consumption. Volute casing optimized for high-volume drainage.
Premium-grade cast iron pump casing, impeller, and wear plate for maximum durability on construction sites and mining operations. Handles abrasives like sand, silt, and small gravel without damage.
Available in both single-phase (220V) and three-phase (415V) motor options. Single-phase models ideal for residential and small commercial use. Three-phase for heavy-duty industrial and construction applications.
Double mechanical seals with oil chamber provide reliable protection against water ingress. Carbon-ceramic or silicon carbide seal faces for extended service life in abrasive drainage conditions.
Vortex impeller design available for applications with suspended solids and debris. The non-clogging vortex action minimizes contact between impeller and solids, reducing wear and maintenance.
Built-in thermal overload protection with automatic motor winding sensors. Prevents motor damage from overheating during dry running, overload, or high-ambient temperature conditions.
Technical Specifications
Flow Chem drainage pump models for various dewatering applications
| Specification | Single-Phase Models | Three-Phase Models |
|---|---|---|
| Flow Range | Up to 60 m³/hr | Up to 250 m³/hr |
| Head Range | Up to 18 meters | Up to 35 meters |
| Motor Power | 0.5 HP to 3 HP | 1.5 HP to 30 HP |
| Power Supply | Single-Phase, 220V, 50Hz | 3-Phase, 415V, 50Hz |
| Speed | 2-Pole (2900 RPM) | 2-Pole (2900 RPM) / 4-Pole (1450 RPM) |
| Solid Handling | Up to 10mm | Up to 25mm |
| Insulation Class | Class F | Class F |
| Sealing | Double mechanical seal + oil chamber | Double mechanical seal + oil chamber |
| Material | Cast iron (FC 250 grade) | Cast iron (FC 250 grade) |
| Impeller Type | Semi-open / vortex | Semi-open / vortex |
| Discharge Size | 25mm to 50mm | 50mm to 150mm |
| Max Fluid Temp | 35°C | 40°C (standard), 60°C (hot water models) |
| Duty Cycle | Continuous (S1) | Continuous (S1) |
Custom specifications available. For corrosive or hot water applications, special material and seal options are available. Contact our team for detailed pump selection.
Applications
Flow Chem drainage pumps handle demanding water removal across India's construction, mining, and infrastructure sectors
Construction Site Dewatering
Removing groundwater and rainwater from excavations, foundations, trenches, and basement construction. Essential for keeping construction sites dry and workable during monsoon and high water table conditions.
Flooded Basement & Cellar
Emergency flood water removal from basements, cellars, underground parking, and below-grade structures. Single-phase models are ideal for residential and small commercial buildings.
Mining and Excavation
Open pit mine dewatering, tunnel face pumping, and underground mine drainage. For heavy slurry and sediment-laden water, our agitator slurry pumps provide superior solids handling.
Tunneling and Underground Works
Tunnel face dewatering during metro, road tunnel, and infrastructure tunnel construction. Compact pump designs fit in confined tunnel spaces while delivering high flow rates for rapid water removal.
Surface Water Management
Drainage of accumulated rainwater from open fields, low-lying areas, storm water collection pits, and reservoirs. For large-scale storm water pumping, our waste water pumps offer higher capacities.
Industrial Plant Drainage
Process water circulation, cooling water drainage, and effluent transfer in industrial plants. For contaminated wastewater with organic solids, see our sewage sludge pumps.
Swimming Pool & Fountain
Pool emptying, fountain water recirculation, and water feature drainage. Clean water handling with minimal maintenance requirements. Corrosion-resistant options available for chlorinated pool water.
Agricultural Drainage
Field drainage during monsoon, irrigation canal pumping, and pond water management. Cost-effective single-phase models available for agricultural use where three-phase power is not accessible.
Which Pump Do You Need?
Choose the right pump type based on your water conditions
💧 Drainage Pump
Best for: Clean to mildly turbid water
Construction sites, basements, tunnels, mining, surface water. Handles sand, silt, and small debris. Highest flow rates (up to 250 m³/hr). Single and three-phase options.
This product →
🔄 Sewage Pump
Best for: Raw wastewater with solids
Municipal sewage, STPs, septic tanks, industrial effluent. Handles solids up to 60mm including organic matter. See our sewage sludge pumps.
🌊 Dewatering Pump
Best for: Large-scale water removal
Flood relief, river bypass, large excavations. Very high head and flow combinations. See our dewatering pump range.
Need help choosing? Our engineers provide free pump selection based on your site conditions, flow requirements, and water quality. Contact us now or learn about our installation services.
Explore Our Full Product Range
Complete range of industrial submersible pumps from India's ISO certified manufacturer
Submersible Drainage Pump
Learn More →
Submersible Sewage / Sludge Pump
Learn More →
Submersible Waste Water Pump
Learn More →
Submersible Agitator Slurry Pump
Learn More →
Submersible Cutter Pump
Learn More →
Submersible Jet Aerator Pump
Learn More →Why Choose Flow Chem Drainage Pumps
Trusted by 100+ clients across India for construction and dewatering applications
🏗️ Construction-Ready Design
Robust cast iron construction withstands harsh construction site conditions — dust, vibration, impact, and continuous operation. Portable designs with lifting handles for easy movement between excavations.
⚡ Single & Three Phase
India's most comprehensive drainage pump range — from 0.5 HP single-phase for residential use to 30 HP three-phase for heavy construction and mining. One manufacturer for all your drainage needs.
🏭 ISO 9001:2015 Quality
Every pump manufactured and tested at our Gujarat facility. Hydraulic performance testing, motor insulation checks, and seal integrity verification on every unit before dispatch.
🔧 Easy Maintenance
Modular pump design allows quick inspection and servicing without special tools. Replaceable wear parts — impeller, wear plate, seals — extend pump life cost-effectively. Local spare parts availability across India.
🚚 Rapid Delivery
Standard drainage pump models dispatched within 2-5 working days from our Gujarat factory. Delivery to all Indian states through our logistics network. Emergency same-day dispatch available for critical dewatering needs.
🤝 Complete Support
Free pump sizing and selection from our engineering team. Professional installation services available across India. After-sales support, spare parts, and maintenance guidance for the lifetime of your pump.
Frequently Asked Questions
What is the difference between a drainage pump and a sewage pump?
A drainage pump is designed for clean to mildly turbid water — construction sites, basements, tunnels, mining. It handles sand and silt but not large organic solids. A sewage pump is designed for raw wastewater with solids up to 60mm — STPs, septic tanks, municipal sewage. For contaminated water with both solids and fibrous material, a cutter pump may be needed.
Can drainage pumps handle dirty muddy water?
Yes, Flow Chem drainage pumps handle muddy water with suspended sand, silt, and small debris (up to 25mm depending on model). For water with heavy sediment or thick slurry that needs agitation, our agitator slurry pumps are specifically designed for that purpose.
Do you have single-phase drainage pumps for residential use?
Yes, Flow Chem offers single-phase (220V) drainage pumps from 0.5 HP to 3 HP — ideal for basement sumps, residential flood control, garden drainage, and small construction projects where three-phase power is not available. Contact us for model recommendations.
How do I size a drainage pump for my construction site?
Key factors: water inflow rate (liters/minute), vertical lift (head), horizontal distance, pipe friction losses, and solids content. Our engineering team provides free pump sizing based on your site conditions. Contact us with your requirements.
Do you provide installation and commissioning services?
Yes, Flow Chem provides professional pump installation services across India. Our team handles site assessment, sump design, pump installation, electrical connections, commissioning, and operator training. Available for projects of all sizes.
