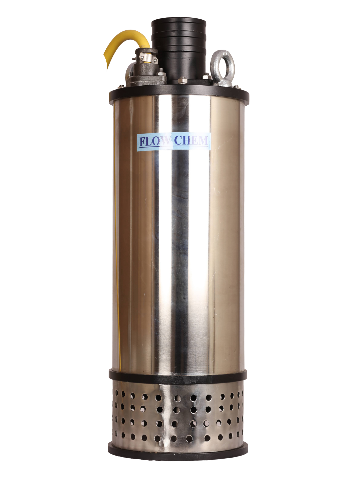

Submersible Sewage / Sludge Pump
- Application: Sewage treatment plant, septic tank, leather industry, chemical industries, manhole sewer, kitchen waste service.
- Delivery: Up to 100 mm.
- Max permissible solid size: Up to 60 mm.
- Capacity: Up to 126 m3/hr (max).
- Head: Up to 23 mtr (max).
- Max liquid temperature: 40°C.
- Power range: 1 HP to 15 HP.
- Degree of protection: As per IP: 68.
- Insulation class: F.
- Version: AC 50 Hz, single phase up to 2 HP & 3 phase up to 15 HP.
- Motor: SECW (copper) wound.
- Motor type: Dry / Oil filled.
- Direction: Clockwise viewed from driving end.
- Duty: S1.
- Pump MOC: CI / SS304 / SS316.
- Sealing: Double mechanical seal.
- Faces: Carbon / Ceramic, Tc / Tc, Sic / Sic.
