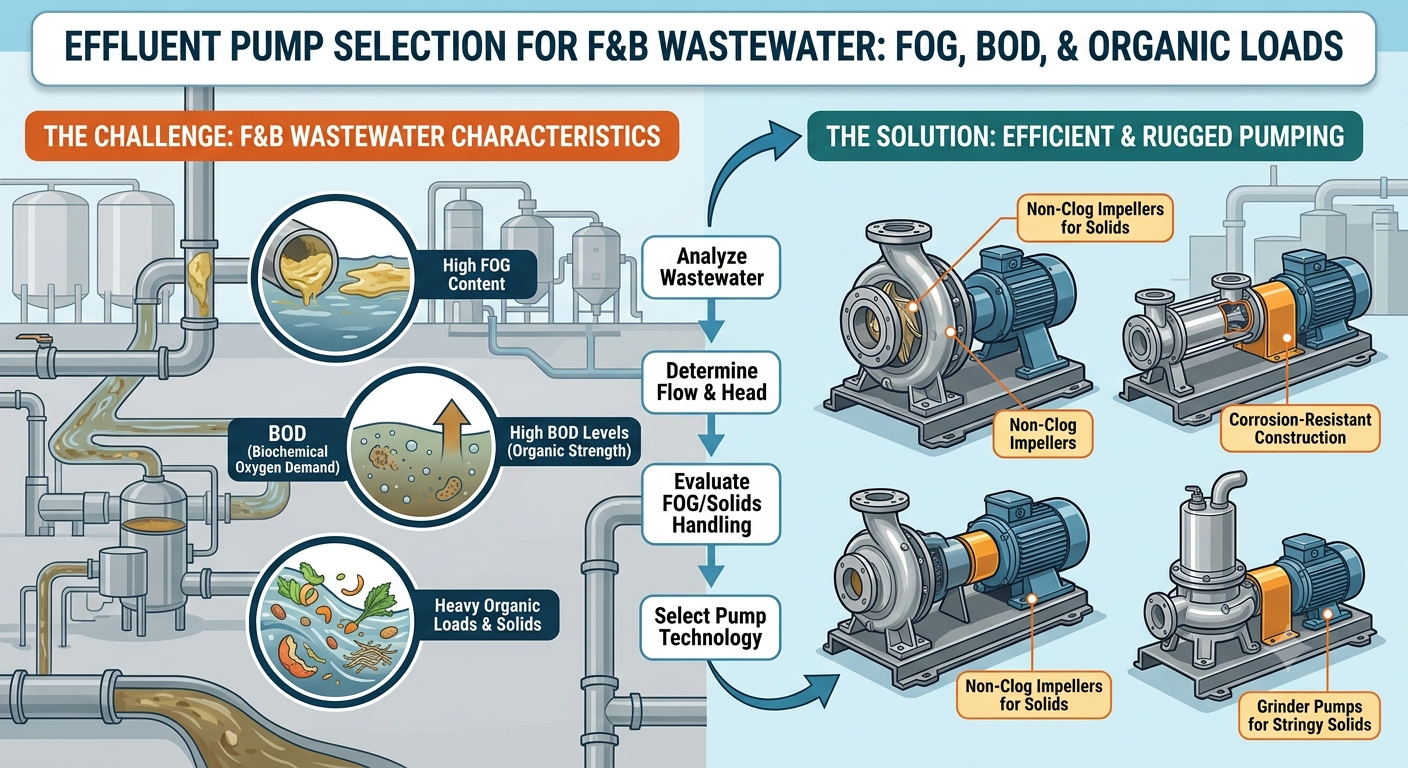

Effluent Pump Selection for Food and Beverage Wastewater: FOG, BOD, and Organic Loads

Why food and beverage effluent is a distinct duty

Food processing wastewater concentrates everything difficult about organic effluent:

• Very high BOD and COD: sugars, starches, proteins, and fats push BOD to 2,000-10,000 mg/L or more - tens of times domestic sewage. This organic strength matters to pumps indirectly but powerfully: effluent that sours in the sump turns acidic and corrodes.
• FOG at industrial intensity: fryers, dairies, and meat rendering deliver fats and oils at concentrations no municipal catchment matches. Deposits harden with calcium in hard-water plants into stubborn layers.
• Solids of every kind: vegetable trimmings and fibrous waste from fruit processing, starchy slurries from snack and grain operations, meat and poultry residues, spent grain from breweries, and packaging debris that escapes into drains.
• CIP chemical surges: clean-in-place cycles periodically send caustic soda and acid solutions down the drains between product runs. The sump sees pH swings between strong alkaline and strong acidic within a single shift.
• Batch washdown surges: shift-end washdown doubles or triples instantaneous flow, while production breaks leave the sump still - detention time that sours the contents and settles solids.
• Temperature swings: hot fryer oil discharge, hot CIP solutions, and chilled process water all arrive at the same sump.

The result is a chemically aggressive, solids-laden, rapidly-souring liquid that punishes both hydraulic shortcuts and material mismatches.

What souring does to pumps and sumps

Organic effluent begins digesting almost immediately. Aerobic digestion consumes oxygen; once depleted, anaerobic bacteria generate organic acids, then sulfides. In a food-plant sump this can happen within hours during production breaks:

• pH drops as organic acids form, attacking concrete, steel, and unsuitable alloys.
• Corrosion accelerates on pump components, guide rails, and fittings - especially at the air-liquid interface where wet-dry cycling concentrates attack.
• Odor develops and, in sulfide-forming sumps, hydrogen sulphide attacks structures just as it does in septic municipal stations - the septicity guide for pump stations details that mechanism.
• Slime layers build on walls and sensors, fouling floats and causing level errors.

The operational antidotes mirror municipal practice - minimize detention time, keep contents moving, wash down walls - but food plants add one more: schedule production and washdown so that sumps receive flush flow during breaks, and never let raw effluent stand over weekends. Many plants install a small "rumbling" routine that starts pumps periodically or recirculates contents to keep them fresh until Monday.

Stage-wise pump selection in a food ETP

A food and beverage effluent train concentrates distinct duties. Treat each as its own selection:

1. Raw effluent collection and screening

The raw sump receives everything: fibrous trim, starch, FOG, packaging fragments, CIP chemicals. Non-negotiables:

• Screens ahead of pumps. Rotary or static screens catch solids the pump should never see. Screen maintenance is an operator discipline; a blinded screen sends everything downstream.
• Solids-tolerant pumps. Vortex or channel impellers with generous clearances pass what screens miss - including stringy vegetable waste that behaves like rags. The anti-clog impeller guidance in the non-clog pump guide applies directly.
• Chemical-tolerant construction. CIP surges mean the sump liquid is not always "wastewater" - it is sometimes dilute caustic or acid. Wetted materials and seals must tolerate both ends of the pH swing.

2. Equalization transfer

Equalization buffers batch surges and mixes CIP chemicals to manageable levels. Transfer pumps here see moderated but still variable chemistry and fine suspended solids. Size from the washdown and batch schedule, and set level controls to avoid both short-cycling and stagnation - the level control guide for float switches covers that balance.

3. DAF and physicochemical stages

Dissolved-air flotation removes FOG and suspended solids using coagulants and flocculants. Pumps in this area include recycle pumps (which pressurize the air-saturation vessel - a clean-water duty but at pressure, where energy efficiency matters) and chemical dosing pumps selected for chemical compatibility. DAF sludge - a frothy, FOG-rich float - goes to sludge handling.

4. Biological treatment transfer

Where biological treatment follows, transfer and recirculation pumps see biologically active, moderately aggressive liquid. Standard wastewater-grade construction with reliable seals usually serves well. Avoid dead-leg recirculation layouts that let biomass sour in standby lines.

5. Sludge handling

Food-plant sludge is a combined stream: DAF float sludge rich in FOG, biological excess sludge, and settled grit or starch. It is variable - thin after washdown, dense after draining - and often foul-smelling and sticky. Select dedicated sludge pumps for this duty per the sludge pump selection guide; do not rotate transfer pumps into sludge service.

Material and seal considerations for food-plant effluent

Materials face a two-front challenge: the effluent itself and the cleaning chemicals:

• Acid attack from souring: organic acids attack concrete and metals; where sumps sour regularly, coated or alloy wetted parts and protected steelwork earn their premium.
• CIP chemical tolerance: seals, gaskets, and elastomers must tolerate caustic and acid excursions. Confirm elastomer compatibility against the plant's actual cleaning chemistry list.
• Fat and oil swelling: some fats and oils soften certain elastomers and plastics. Seals in dairy and frying operations need compatibility verified against the actual products.
• Abrasion: starchy, gritty solids (grain dust, bone meal, soil on vegetables) abrade clearances. Hardened or replaceable wear parts extend intervals between overhauls.
• Hygiene-adjacent areas: where effluent equipment sits in production areas, smooth, cleanable surfaces and sealed motor designs support sanitation programs; most plants draw the hygiene boundary at the drain, but local food-safety audits may ask.

Mechanical seals remain the highest-attention item. FOG can stiffen in seal chambers, fibrous material can wind in, and CIP excursions attack elastomers. Dry-run protection, seal-flush arrangements where warranted, and on-site seal kits follow the same logic as any severe wastewater duty - the mechanical seal failure guide explains the failure modes.

Sizing for batch, washdown, and shift patterns

Food plants breathe in shifts. Pump sizing that ignores the rhythm causes both flooding and stagnation:

• Collect the real flow pattern: production batches, CIP cycle timing, shift-end washdown volumes, and weekend patterns. The design inflow is the peak washdown hour plus coincident production, not the daily average.
• Buffer before pumping. Equalization volume converts the plant's worst hour into a manageable pumping rate; undersized buffering forces oversized pumps that short-cycle.
• Weekend and shutdown strategies: where production stops for a day or more, provide automatic routines that keep sumps from stagnating - timed pump runs, recirculation, or fresh-water flushes - and make Monday-morning odor a designed-away problem rather than a weekly complaint.
• Standby and alternation: with two or more pumps, alternate on cycles so neither sits in souring, solids-settling liquid; the alternation discipline also extends seal and motor life.

Energy note: effluent pumps in food plants often run many hours daily against moderate heads. Efficient duty-point selection and correct impeller trims pay back quickly - the pump energy efficiency guide provides the calculation frame.

Monsoon, drainage, and site integration

Food-plant effluent systems interact with site drainage and weather:

• Exclude clean stormwater from the effluent stream wherever possible. Monsoon runoff can triple hydraulic load, upsetting equalization, DAF, and biological dosing. Segment drains: process effluent to the ETP, stormwater to stormwater drains.
• Elevate and seal control panels before monsoon; food-plant yards flood first at drain crossings.
• Screen-house design should shed rain and allow daily cleaning even during downpours, because monsoon months are precisely when fibrous washdown loads peak in vegetable and fruit processing.
• Pre-monsoon desludging of sumps and equalization tanks prevents October surprises, since monsoon dilution complicates sludge handling just when volumes peak.

Common mistakes in food and beverage effluent pumping

• Treating it as ordinary sewage. The organic strength, FOG, and CIP chemistry demand stage-specific selections; municipal practice is the starting point, not the specification.
• Screens as an afterthought. A blinded or broken screen quietly converts the pump into the screen. Screen cleaning belongs in the daily operator checklist.
• Ignoring CIP chemistry in material selection. Seals chosen for effluent alone fail in the caustic surge. Verify against the cleaning-chemical inventory.
• Sizing from the daily average. Washdown surges decide pump and sump sizing; average-based systems flood at shift end and short-cycle at night.
• Letting effluent stand over shutdowns. Weekend stagnation sours sumps, corrodes equipment, and loads Monday biological systems with an acid slug. Automatic keep-fresh routines are inexpensive.
• No dedicated sludge pump. DAF float sludge and biological sludge are distinct duties; improvising with transfer pumps produces repeated failures and manual sludge handling.
• Overlooking FOG at the design stage. Fryer-heavy and dairy plants need FOG management from day one - traps or interception at source, wet-well geometry that manages floating mats, and cleaning routines that stay ahead of accumulation, per the grease-handling guide.
