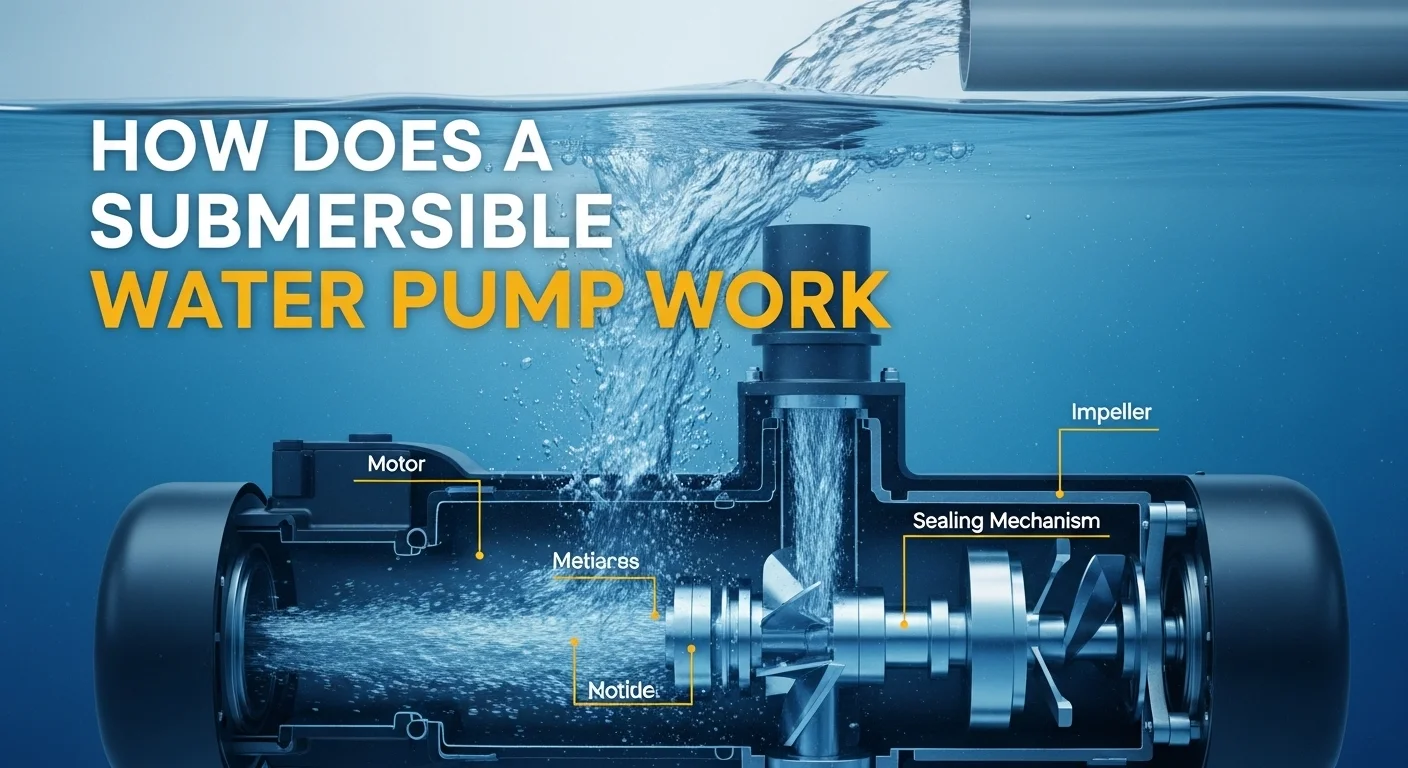

How Does a Submersible Water Pump Work?
Admin
Article Author
A submersible water pump appears straightforward from the outside: a cylindrical device submerged in water that moves fluid from one location to another. Yet beneath this simple appearance lies sophisticated engineering that combines electrical power, mechanical precision, and hydraulic principles to accomplish what many consider impossible — lifting water upward against gravity.
Understanding how submersible pumps work is essential for anyone involved in water management, whether designing municipal systems, managing industrial operations, or selecting equipment for residential applications. This comprehensive guide explains the mechanical and electrical principles that enable submersible pumps to operate reliably in demanding environments.
The Basic Principle: What Makes a Submersible Pump Work?
At its core, a submersible pump operates on a simple principle: a motor-driven impeller accelerates water outward through centrifugal force, creating pressure that propels water through a discharge pipe.
The essential components work together in this sequence:
- Electrical power flows into a submersed motor (no exposed wiring, no external connection except power cord)
- The motor drives an impeller shaft at high speed (typically 1,500 or 3,500 RPM for industrial pumps)
- The impeller accelerates water from center to outer edge (centrifugal action)
- A volute chamber converts velocity into pressure (discharged water flows upward)
- Water is pushed through piping to its destination (against gravity and friction resistance)
This entire process happens continuously, 24 hours per day, in operating submersible pumps worldwide.
Part 1: The Motor — Converting Electrical Energy to Mechanical Rotation
How the Submersible Motor Works
A submersible motor is fundamentally an induction motor — the same type used in countless industrial applications, but specifically designed for operation while fully submerged in liquid.
Standard induction motor principle:
An induction motor operates using two magnetic fields:
- Stator (stationary part): Copper coils wound around the motor body create a rotating magnetic field when AC current flows through them
- Rotor (rotating part): Metal bars in the rotor are induced by the stator's changing magnetic field, creating current in the rotor bars
- Magnetic attraction: The rotor's magnetic field is slightly weaker than the stator's field, causing the rotor to "chase" the stator's rotating field
- Rotation: The rotor spins at a speed slightly below the stator's field rotation rate (called "slip")
Motor speed formula:
N = (120 × f) / p
Where:
- N = motor speed (RPM)
- f = electrical frequency (50 Hz in India/Europe, 60 Hz in USA)
- p = number of magnetic poles
Example calculation:
A 4-pole motor in India (50 Hz):
- N = (120 × 50) / 4 = 1,500 RPM (standard industrial speed)
A 2-pole motor in USA (60 Hz):
- N = (120 × 60) / 2 = 3,600 RPM (standard US speed)
Submersible Motor Design Differences
A submersible motor differs from land-based motors in critical ways:
Sealed motor housing:
- No air intake or exhaust vents (prevents water ingress)
- Motor is completely enclosed in a pressure-tight casing
- Liquid directly contacts the motor housing exterior
Cooling system:
- Land motors use forced air cooling (fan blowing air across windings)
- Submersible motors rely on liquid-cooled design (water surrounding the motor dissipates heat)
- Motor efficiency and lifespan depend on adequate liquid circulation
Electrical insulation:
- Submersible motor windings use epoxy-impregnated insulation (water-resistant)
- Multiple layers of insulation protect against short-circuits from moisture or contamination
Mechanical seals:
- Critical seal between rotating shaft and stationary motor housing
- Prevents water from entering motor cavity where electrical components live
Part 2: The Impeller — Creating Centrifugal Force and Flow
Impeller Function and Design
Once the motor drives the impeller shaft, the impeller becomes the primary component that moves water. An impeller is essentially a rotating wheel with curved blades designed to accelerate liquid outward.
How the impeller creates flow:
When the impeller rotates, each blade pushes against the water in front of it. Water cannot compress, so it must move. The curved blade design forces water outward from the center (eye of the impeller) toward the outer edge (periphery).
Centrifugal force calculation:
For a water particle at the impeller edge:
F = m × ω² × r
Where:
- m = mass of water particle
- ω = angular velocity (rotations per second)
- r = distance from rotation center
Example:
A 200 mm diameter impeller at 1,500 RPM:
- ω = 1,500 ÷ 60 = 25 rotations per second = 157 radians/second
- For a particle at the edge (r = 0.1 m):
- F = 0.001 kg × (157)² × 0.1 = 2.46 Newtons of centrifugal force
While this seems small for a single particle, the impeller contains millions of water particles, creating sustained flow.
Impeller Types
Different impeller designs serve different purposes:
Centrifugal (closed blade design):
- Blades enclosed between front and back shrouds
- Highest efficiency (85–92%) for clean water
- Risk of clogging with solids or fibers
Non-clogging (open blade design):
- Blades not fully enclosed; larger passages between blades
- Lower efficiency (75–85%) but handles solids up to 50–75 mm
- Standard for sewage and drainage applications
- Can process wastewater with rags, sanitary products, debris
Turbine (multi-stage):
- Multiple smaller impellers stacked on a single shaft
- Each stage adds pressure (head)
- Example: 3-stage turbine at 1,500 RPM can lift water 30+ meters vs. 10 meters for single-stage
Positive displacement (screw/helical):
- Helical rotors instead of centrifugal blades
- Constant flow regardless of pressure
- Excellent for slurry and high-solids applications
- Lower efficiency (60–70%) but superior solids handling
Part 3: The Volute — Converting Velocity to Pressure
Volute Design and Function
After the impeller accelerates water and flings it outward, a critical component called the volute converts the water's velocity (speed) into usable pressure.
Volute principle:
The volute is a spiral-shaped chamber that gradually expands from the impeller discharge point. As the water moves through this expanding chamber, its velocity decreases. By the principle of energy conservation (Bernoulli's equation), when velocity decreases, pressure must increase.
Bernoulli's equation in action:
P + ½ρv² + ρgh = constant
When water exits the impeller at 10 m/second and the volute expands, velocity might decrease to 5 m/second. The kinetic energy (½ρv²) decreases, and this energy converts to pressure energy (ΔP).
Energy conversion calculation:
ΔP = -½ρ(v₂² - v₁²)
ΔP = -½ × 1,000 × (25 - 100)
ΔP = -½ × 1,000 × (-75) = 37.5 kPa (0.375 bar pressure gain)
The volute converts approximately 50–70% of the impeller's velocity energy into usable pressure. The remaining energy is lost as heat through friction and turbulence.
Why the Volute Matters
Without a volute, the water would exit the impeller at high velocity but low pressure. The pump would create splash and flow, but insufficient pressure to lift water vertically.
The volute creates the pressure necessary to:
- Overcome atmospheric pressure (lift water against gravity)
- Overcome friction losses in piping (pressure drop from pipe roughness and bends)
- Maintain flow rate despite system resistance
Part 4: Suction and Discharge — The Complete Flow Path
Intake (Suction) Side
Water enters the pump through the suction port. Unlike surface pumps that must create suction (pull water from below), submersible pumps have positive suction — the water surrounding the pump provides inlet pressure.
Intake strainer:
Most submersible pumps include an intake strainer (fine mesh screen) that:
- Prevents large debris from entering the pump
- Allows water to flow freely into the impeller eye
- Must be cleaned periodically to prevent clogging
Low-pressure zone at impeller center:
As the impeller rotates, it creates a low-pressure zone at its center (eye). This pressure differential draws water in from the intake, creating continuous flow.
The pressure at the impeller eye is lower than atmospheric pressure, but the surrounding liquid (which is in contact with the pump) provides positive pressure, overcoming any suction limit concerns. This is why submersible pumps excel in permanently submerged applications where surface pumps struggle.
Discharge (Outlet) Side
After passing through the volute, pressurized water exits through the discharge port and into the piping system.
Discharge piping requirements:
The pipe size must be adequate to handle the flow without excessive pressure drop:
- Too-small piping: High velocity, excessive friction loss, reduced flow capacity
- Properly-sized piping: Moderate velocity (2–3 m/second typical), minimal loss
- Oversized piping: Low velocity, but increased cost and space requirements
Pressure requirement in discharge:
The pump must create pressure sufficient to overcome:
- Static head: Vertical lift height (example: 10 meters = 1 bar pressure requirement)
- Friction head: Resistance from pipe roughness and bends (calculated using Darcy-Weisbach equation)
- Dynamic pressure: Kinetic energy needed to maintain flow velocity in the discharge line
Total discharge pressure example:
Pumping from a 10-meter-deep sump to a 5-meter-high discharge point through 100 meters of pipe:
- Static lift: 10 + 5 = 15 meters = 1.47 bar
- Friction loss (100 mm PVC, 100 m/hour flow): ~0.5 bar
- Total required pressure: ~2 bar
A 10-kW submersible pump can typically deliver this pressure while moving water at 100–200 liters/minute, depending on the specific head requirement.
Part 5: The Complete Operating Cycle — How It All Works Together
Moment-by-Moment Operation
Let's trace water through a complete cycle in a municipal sewage lift station:
Step 1 — Water enters the sump:
- Raw wastewater flows from residential and commercial sources into a collection pit
- Water level rises as inflow exceeds outflow
- A float switch mounted on the pump detects rising water level
Step 2 — Pump activation:
- Float switch triggers a relay that energizes the motor contactor
- 3-phase electrical power flows to the motor
- Motor winding current creates a rotating magnetic field
Step 3 — Impeller acceleration:
- Motor begins rotating the impeller shaft at 1,500 RPM
- Impeller blades accelerate water from the center outward
- Centrifugal force ejects water into the volute chamber
Step 4 — Pressure creation:
- Volute chamber expands, converting kinetic energy to pressure
- Pressure builds to 1.5–3 bar (typical for lift stations)
- Pressurized water forces open a check valve in the discharge line
Step 5 — Water discharge:
- Pressurized water flows through the discharge pipe
- Water travels against gravity (8–15 meters typical lift)
- Water enters the downstream sewage main or treatment plant
Step 6 — Water level stabilization:
- As the pump removes water, the sump level drops
- Flow continues until water level reaches the "low" float switch setpoint
- Float switch sends a signal to deactivate the motor contactor
Step 7 — Pump shutdown:
- Motor power is cut
- Impeller coasts to a stop (takes 30–60 seconds depending on pump size)
- Check valve in the discharge line closes, preventing backflow into the sump
- System is ready for the next activation cycle
This cycle repeats dozens to hundreds of times per day, depending on wastewater inflow and sump size.
How Submersible Pumps Handle Different Liquids
Sewage and Wastewater (Typical Submersible Pump Application)
Sewage contains:
- Solid particles (sand, gravel, food waste)
- Fibrous material (rags, toilet paper, wipes)
- Biological contaminants (bacteria, viruses)
- Variable viscosity (thicker during winter, thinner in summer)
A non-clogging impeller design handles these conditions by:
- Allowing particles up to 50–75 mm to pass through without blockage
- Using open blade design to prevent fiber entanglement
- Accepting slurry-like flow characteristics
Seal specification matters: In sewage applications, dual mechanical seals with silicon carbide (SiC) faces are essential because:
- Single seals fail when bacteria-generated slime clogs the seal face
- Standard ceramic seals dissolve in acidic wastewater (H₂S production in septic conditions)
- SiC seals resist biological attack and acid corrosion
Clear Water Applications (Fountains, Irrigation)
Clear water allows:
- Higher-efficiency centrifugal impeller design
- Standard mechanical seals with ceramic faces
- Quieter, more efficient operation
- Longer service life (less wear from abrasive particles)
Slurry and Mining Applications
High-solids applications require:
- Hardened impeller materials (white iron, composite ceramics)
- Larger blade passages (non-clogging design with even larger openings)
- Positive displacement pumps for extreme solids concentration (>30% by weight)
- Frequent impeller replacement (planned consumable replacement)
Efficiency and Energy Conversion
Energy Flow Through the Pump
Not all electrical energy converts to moving water. Energy is lost at each stage:
Motor efficiency: 92% typical
- 8% lost as motor winding heat, friction in bearings
Impeller hydraulic efficiency: 85% typical
- 15% lost to friction on blade surfaces, turbulence, recirculation
Volute conversion efficiency: 50% typical
- 50% of kinetic energy converts to pressure
- 50% lost as heat from friction and turbulence
Overall system efficiency: 92% × 85% × 50% = 39% overall
This means for every 100 kW of electrical input:
- 39 kW actually moves water against resistance
- 61 kW becomes heat in the water and motor
Real-world example — 15 kW pump:
Input power: 15 kW electrical
- Motor loss: 15 × 0.08 = 1.2 kW (heat)
- Impeller loss: (15 - 1.2) × 0.15 = 2.07 kW (turbulence)
- Volute loss: 11.73 × 0.50 = 5.87 kW (friction)
- Useful work: 5.86 kW (lifts water, overcomes pipe friction)
This explains why larger pumps tend to have higher efficiency — losses are proportionally smaller in large machines.
Performance Characteristics: Head and Flow
Understanding Pump Curves
Every submersible pump has a characteristic performance curve showing the relationship between flow rate and head.
Flow rate (horizontal axis):
- Measured in liters per minute, gallons per hour, or cubic meters per hour
- Represents volume of water moved per unit time
Head (vertical axis):
- Measured in meters of water column
- Represents the vertical height water can be lifted
- Related to pressure: 10 meters head ≈ 1 bar pressure
Pump curve shape:
As flow increases, available head decreases. This is a fundamental characteristic of centrifugal pumps.
Why? At higher flow rates, water moves through the impeller faster. Higher velocity means lower pressure (Bernoulli's principle). The volute cannot fully convert higher-velocity flow to additional pressure.
Example pump performance:
At 0 flow (discharge blocked): 20 meters head
At 50 liters/minute: 18 meters head
At 100 liters/minute: 15 meters head
At 150 liters/minute: 10 meters head
At 200 liters/minute: 0 meters head (pump cannot deliver water)
The Operating Point
A pump doesn't operate at a single point on its curve. The actual operating point depends on system resistance.
System resistance (friction and static head) also increases with flow. The operating point is where the pump curve intersects the system requirement curve.
Example: A 100 m³/hour pump with a 10-meter head requirement operating against system resistance might actually deliver only 85 m³/hour at 9.2 meters, where the pump's capability and system demand are balanced.
Variable Speed Operation — Modern Efficiency Enhancement
Traditional Fixed-Speed Operation
Conventional submersible pumps run at fixed speed (1,500 or 3,500 RPM) synchronized with AC power frequency. If the system needs less water, a valve is throttled (creating backpressure), reducing flow but wasting energy.
Variable Frequency Drive (VFD) Control
A variable frequency drive changes the electrical frequency sent to the motor, allowing speed adjustment:
Affinity laws relate speed to performance:
- Flow ∝ Speed (linear relationship)
- Head ∝ Speed² (quadratic relationship)
- Power ∝ Speed³ (cubic relationship)
Example — VFD speed reduction:
Pump operated at 80% speed (0.8 × 1,500 RPM = 1,200 RPM):
- Flow reduced to: 100 × 0.8 = 80 m³/hour
- Head reduced to: 10 × (0.8)² = 6.4 meters
- Power consumed: 15 × (0.8)³ = 7.68 kW (49% of full-speed power)
Energy savings: Reducing speed from 100% to 80% reduces power consumption from 15 kW to 7.68 kW — a 49% reduction for a modest flow reduction.
This is why VFD-controlled pumps are increasingly specified in municipal treatment plants and industrial applications where flow requirements vary throughout the day.
Troubleshooting: What Goes Wrong and Why
Loss of Flow
Causes:
- Clogged intake strainer: Debris blocks water entry
- Cavitation: Air in the intake line reduces priming
- Blockage in discharge: Downstream pipe or valve blocked
- Impeller wear: Erosion reduces flow capacity
- Air lock in pump: Air pocket prevents water from entering impeller
Solution approach:
- Check intake for debris
- Verify discharge is clear
- Listen for unusual noise (cavitation sounds like gravel tumbling)
- Inspect pump performance against specification (significant loss indicates impeller wear)
Excessive Vibration
Causes:
- Loose coupling between motor and pump: Allows wobble
- Impeller imbalance: Blade erosion creates uneven weight distribution
- Bearing wear: Worn bearings allow excessive radial movement
- Cavitation: Vapor bubble collapse creates shock waves
- Foundation settling: Pump not properly mounted
Solution approach:
- Check mechanical alignment and coupling bolt tightness
- Listen for cavitation (distinctive crackling noise)
- Feel pump casing for temperature (overheating indicates friction)
- Verify foundation is stable and level
Motor Not Starting
Causes:
- No electrical power: Circuit breaker tripped, power supply failure
- Thermal overload: Motor overheated and shut down automatically
- Mechanical blockage: Impeller jammed, cannot rotate
- Moisture in motor: Electrical short from water ingress
- Control circuit failure: Float switch or relay malfunction
Solution approach:
- Check electrical power and reset any tripped breakers
- Allow motor to cool if thermal shutdown occurred
- Try rotating pump shaft by hand (should spin freely)
- Use megger insulation tester on motor windings (should read >10 MΩ if dry)
Real-World Performance Example
Municipal Sewage Lift Station in Operation
Specifications:
- Pump capacity: 150 m³/hour at 8 meters head
- Motor: 15 kW, 1,500 RPM, 4-pole
- Application: Lift wastewater from collection sump to main trunk line
- Inflow: 80 m³/hour average, 150 m³/hour peak
- Lift height: 8 meters to discharge point
Operating cycle:
Float switch "high" setpoint is reached (sump water level rising).
Motor contactor energizes, sending 415V, 3-phase power to the motor.
Motor winding current creates rotating magnetic field at 1,500 RPM.
Impeller begins rotating, creating low-pressure zone at center.
Water from the sump flows into impeller eye, accelerated outward by centrifugal force.
Volute converts velocity to pressure, building to approximately 1 bar.
Pressurized water overcomes check valve backpressure (0.5 bar) and flows into discharge pipe.
Water flows upward through 150 meters of discharge piping to the treatment plant.
Actual operating point: 140 m³/hour at 8.1 meters head (close to pump's design point, high efficiency).
Motor current: 28 A (15 kW / 0.92 motor efficiency ≈ 16.3 A, multiplied by power factor).
Motor temperature rise: 45°C above ambient (motor is efficiently cooled by surrounding wastewater).
Flow continues until sump water level drops to float switch "low" setpoint.
Float switch opens the motor contactor, cutting power to the motor.
Motor coasts to a stop over approximately 60 seconds (inertia in rotating impeller and water).
Check valve closes automatically, preventing backflow into sump.
System waits for sump level to rise again to the "high" setpoint.
Total cycle time: Typically 20–40 minutes depending on inflow rate and sump volume.
Conclusion: The Elegant Engineering of Submersible Pumps
A submersible water pump is an elegant solution to a fundamental challenge: moving water from one location to another, often against gravity and friction resistance, while remaining invisible and reliable in harsh environments.
The operation combines:
- Electrical engineering: Motor design that creates rotating magnetic fields
- Mechanical engineering: Impeller and shaft design that accelerates water
- Hydraulic engineering: Volute design that converts velocity to pressure
- Materials science: Seals and casings that resist water and chemical corrosion
- System integration: Intake screening, discharge piping, and control systems
When properly specified, installed, and maintained, a submersible pump can operate reliably for 8–12 years in continuous service, moving millions of liters of water while requiring minimal operator attention.
Understanding how submersible pumps work enables better decision-making about equipment selection, operational optimization, and maintenance planning — ultimately leading to more reliable, efficient water systems.
